METROLOGY AND GAUGING

Diameter and Length

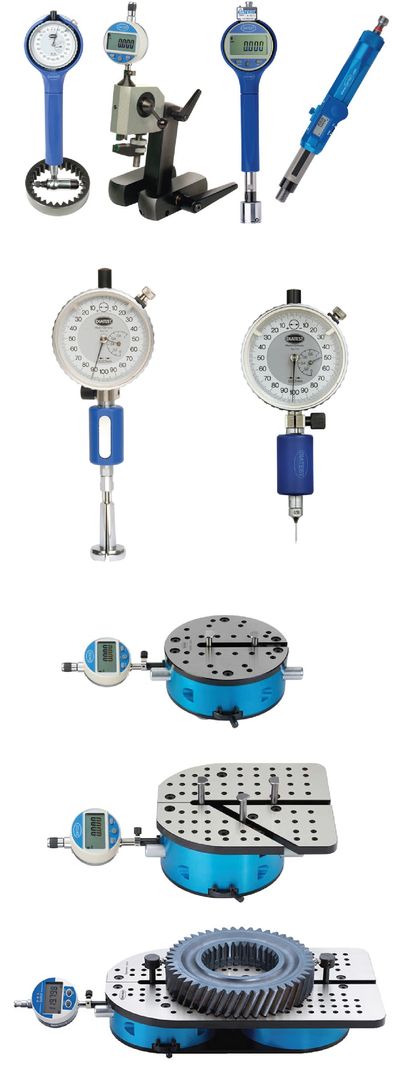

DIATEST offers several solutions for comparative measurement of diameters and lengths. Besides lengths, I.D and O.D, some of these solutions can also measure conicities, grooves, recesses, concentricities etc.

• Plug Gauge BMD
• Split-Ball Probe
• Plunger Probe
• Chamfer Probe
• The flexible measuring table DIA-COME

The new measuring table DIATEST System COME is suitable for conducting internal and external measurements of diameters as well as gear gauges. Users can measure not only bores but also internal and external recesses and conical components.

Measuring Gears

DIATEST offers solutions for internal and outer gear gauging, for ball inserts and roller anvils, as hand tools or with a measuring table. They can also be used for measurement of conicity and ovality. Also applicable for spiral gears and serrations with even- or odd-numbered teeth.

• Internal gear gauges
• External gear gauges EG
• DIA-COME (for gear gauging)
• DIATEST ball inserts and roller anvils

External Measuring

The external diameter gauge AMG is a versatile and high-precision device for use in both production and inspection areas.

• Measuring range: 5 – 25 mm
• Repeatibility: <= 1 µm Travel ca. 6 mm
• Measuring pin with carbide contact point
• Self-centering
• Simple zero-setting using setting discs
• Lower measuring leg adjustable
• Special designs or smaller diameters on request
